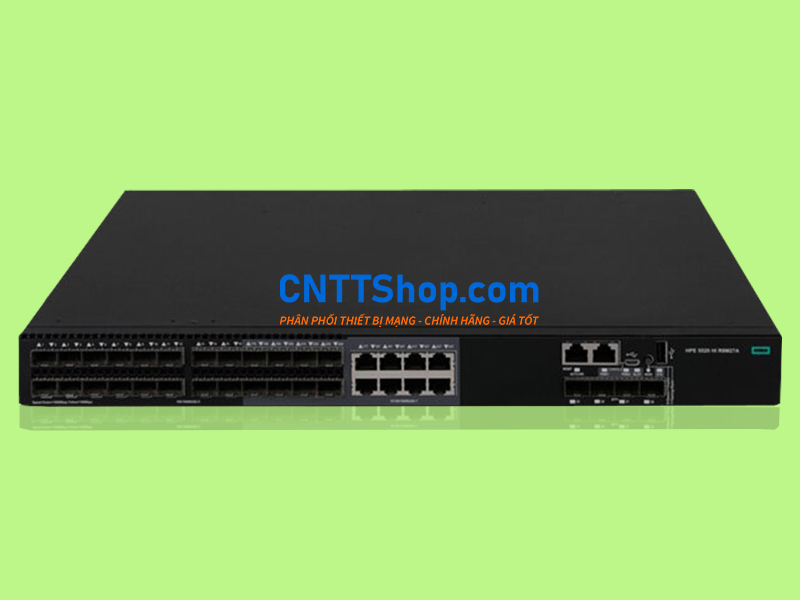

Switch HPE R8M27A có 16x 1G SFP và 8x SFP/GE combo, 4x 1/10G SFP+ uplink ports. Mua Bán switch HPE R8M27A chính hãng, báo giá tốt, hỗ trợ cấu hình thiết bị khi mua hàng
✓ Báo Giá Tốt Nhất 2022
✓ Giảm 60-70% So Với Giá List
✓ Hỗ Trợ Dự Án và Đại Lý
✓ Hàng Chính Hãng Đầy Đủ CO CQ
✓ 1 Đổi 1 Với Lỗi Kỹ Thuật
✓ Bảo Hành, Đổi Trả Nhanh Chóng
✓ Hỗ Trợ Cấu Hình Lắp Đặt
✓ Tư Vấn Nhiệt Tình, Chính Xác
✓ Giao Hàng Trên Toàn Quốc
- Tầng 2, NTT03 Thống Nhất Complex, 82 Nguyễn Tuân, Thanh Xuân, Hà Nội. - Tầng 2, Số 31B Đường số 1, An Phú, Quận 2, TP HCM.Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Datasheet R8M27A | ||
Specifications |
||
I/O ports and slots |
(16) SFP 100/1000 Mbps ports (8) SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports. Ports 17-24 support MACsec 4 SFP+ 1/10GbE ports 1 port expansion module slot |
|
Additional ports and slots |
1 dual-personality (RJ-45 or mini USB) serial console port |
|
1 RJ-45 out-of-band management port |
||
1 USB 2.0 |
||
Power supplies |
2 power supply slots 1 minimum power supply required (ordered separately) |
|
Fan tray |
Airflow direction is Side to Back and Back to Side |
|
Physical characteristics | ||
Dimensions |
17.32(w) x 14.17(d) x 1.72(h) in (43.99 x 36 x 4.37 cm) (1U height) |
|
Weight |
≤6.6kg shipping weight |
|
Memory and processor |
2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
|
Performance |
IPv6 Ready Certified |
|
1000 Mb Latency |
< 5 μs |
|
10 Gbps Latency |
< 3 μs |
|
Throughput |
up to 180 Mpps |
|
Routing/Switching capacity |
288 Gbps |
|
Routing table size |
32768 entries (IPv4), 16384 entries (IPv6) |
|
MAC address table size |
up to 64K, recommended 32K |
|
Environment | ||
Operating temperature |
23°F to 113°F (-5°C to 45°C) |
|
Operating relative humidity |
5% to 95%, noncondensing |
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|
Acoustic |
Low-speed fan: 53 dB, High-speed fan: 68.9 dB; ISO 7779 |
|
Electrical characteristics | ||
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
Ranges from 81 BTU/hr to 416 BTU/hr depending on power supply configuration |
|
Voltage |
90 VAC to 264 VAC -36 VDC to -72 VDC |
|
Current Maximum power rating |
2A 150 W |
|
Idle power |
24W |
Tư vấn - Nhận Xét - Đánh Giá Về Sản Phẩm: R8M27A ?
Cnttshop chuyên phân phối thiết bị mạng HPE, toàn bộ hàng HPE do cnttshop bán ra sẽ được kỹ thuật cnttshop hỗ trợ cấu hình Teamviewer online miễn phí ạ
