Thiết bị chuyển mạch HPE R8M25A

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

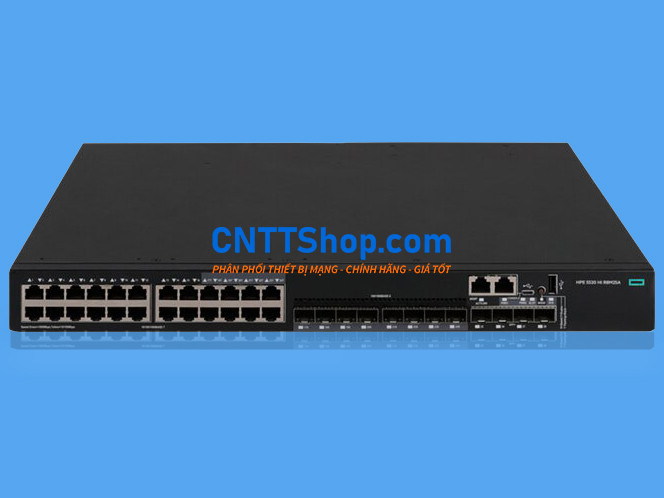

Switch HPE R8M25A 24 Port 10/100/1000BASE-T, 4 Port 10G SFP+, 1 Exp slot

Thông số kỹ thuật

Specifications R8M25A
I/O ports and slots	(16) 10/100/1000BASE-T RJ-45 ports (8) dual-personality ports - 10/100/1000BASE-T RJ45 or 100/1000BASE-X Combo Ports Duplex: Ports 1-24 support 10BASE-T/100BASE-TX, 1000BASE-T (full only); Ports 17-24 support MACsec 4 SFP+ 1/10GbE ports 1 port expansion module slott
Additional ports and slots	1 dual-personality (RJ-45 or mini USB) serial console port
	1 RJ-45 out-of-band management port
	1 USB 2.0
Power supplies	2 power supply slots 1 minimum power supply required (ordered separately)
Fan tray	Airflow direction is Side to Back and Back to Side
Physical characteristics
Dimensions	17.32(w) x 14.17(d) x 1.72(h) in (44.00 x 36.00 x 4.36 cm) (1U height)
Weight	≤ 6.7 kg shipping weight
Memory and processor	2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash
Mounting and enclosure	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance	IPv6 Ready Certified
1000 Mb Latency	< 5 μs
10 Gbps Latency	< 3 μs
Throughput	up to 180 Mpps
Routing/Switching capacity	288 Gbps
Routing table size	32768 entries (IPv4), 16384 entries (IPv6)
MAC address table size	up to 64K, recommended 32K
Environment
Operating temperature	23°F to 113°F (-5°C to 45°C)
Operating relative humidity	5% to 95%, noncondensing
Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity	5% to 95%, noncondensing
Acoustic	Low-speed fan: 53 dB, High-speed fan: 68.9 dB; ISO 7779
Electrical characteristics
Frequency	50/60 Hz
Maximum heat dissipation	Ranges from 81 BTU/hr to 416 BTU/hr depending on power supply configuration
Voltage	90 VAC to 264 VAC -36 VDC to -72 VDC
Current Maximum power rating	2A 150 W
Idle power	24W

Switch HPE R8M25A 24 Port 10/100/1000BASE-T, 4 Port 10G SFP+, 1 Exp slot
