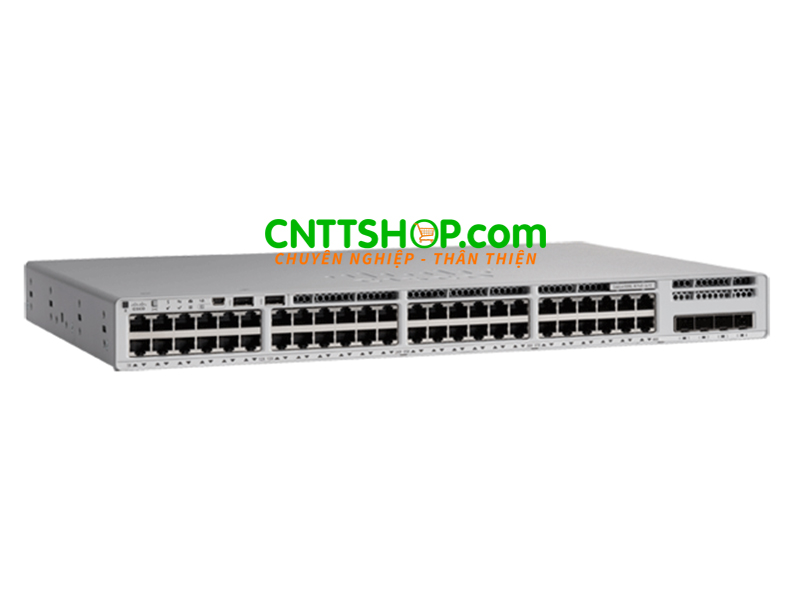

Switch Cisco Catalyst C9200L-48PL-4X-E

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

Thông số kỹ thuật

Description	Specifications
Performance
Switching capacity	176 Gbps
Forwarding rate	130.95 Mpps
Virtual Networks	4
Stacking bandwidth	256 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries	4,000
IPv6 routing entries	2,000
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,600
Packet buffer per SKU	6 MB buffers
Flexible NetFlow (FNF) entries	16,000 flows
DRAM	4 GB
Flash	4 GB
VLAN IDs	4096
Total Switched Virtual Interfaces (SVIs)	1000
Jumbo frames	9198 bytes
Wireless bandwidth per switch	Up to 48 Gbps
Features
Switch fundamentals	Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes), PBR, PIM Stub Multicast (1000 routes), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder
Automation	NETCONF, RESTCONF, YANG, PnP Agent, PnP
Telemetry and visibility	Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
Security	MACsec-128
Physical Specifications
Chassis Dimensions	1.73 x 17.5 x 11.3 Inches 4.4 x 44.5 x 28.8 Centimeters
weight	10.58 Pounds 4.80 Kilograms
Mean time between failures (hours)	375,570
Connectors
Connectors and cabling	- 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling - 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling - 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, dense wavelength-division multiplexing (DWDM) and Coarse Wavelength-Division Multiplexing (CWDM) SFP transceivers: LC fiber connectors (single-mode or multimode fiber) - 10GBASE-SR, LR, LRM (only C9200), ER, ZR, DWDM SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber) - SFP+ connector - Cisco StackWise-160 stacking ports: copper-based Cisco StackWise cabling - Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling - Management console port: RJ-45-to-DB9 cable for PC connections,USB-C adaptor, USB adaptor
Power connectors	Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Standards, Safety and compliance information
Standards	EEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.1x-Rev IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS prioritization IEEE 802.1Q VLAN IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3z 1000BASE-X specification IEEE 802.1AE - 128-bit AES MACsec inter network device encryption with MACsec Key Agreement (MKA) IEEE 802.3bz (for mGig PKG SKU’s only) IEEE 802.3an (10GBase-T) (for mGig PKG SKU’s only)
Safety certifications	IEC 60950-1 UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 Class I Equipment
Electromagnetic emissions certifications	- 47 CFR Part 15 - CISPR 22 Class A - CISPR 32 Class A - CNS 13438 - EN 300 386 - EN 55022 Class A - EN 55032 Class A - EN61000-3-2 - EN61000-3-3 - ICES-003 Class A - KN 32 - TCVN 7189 Class A - V-3 Class A - CISPR 24 - EN 300 386 - EN 55024 - KN 35 - TCVN 7317
Environmental	Reduction of Hazardous Substances (ROHS) 5

Switch Cisco Catalyst C9200L-48PL-4X-E 48 Port Partial PoE+ 1GE Network Essentials
