Switch Cisco Catalyst 1000 Series C1000SM-8T-2G-L

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

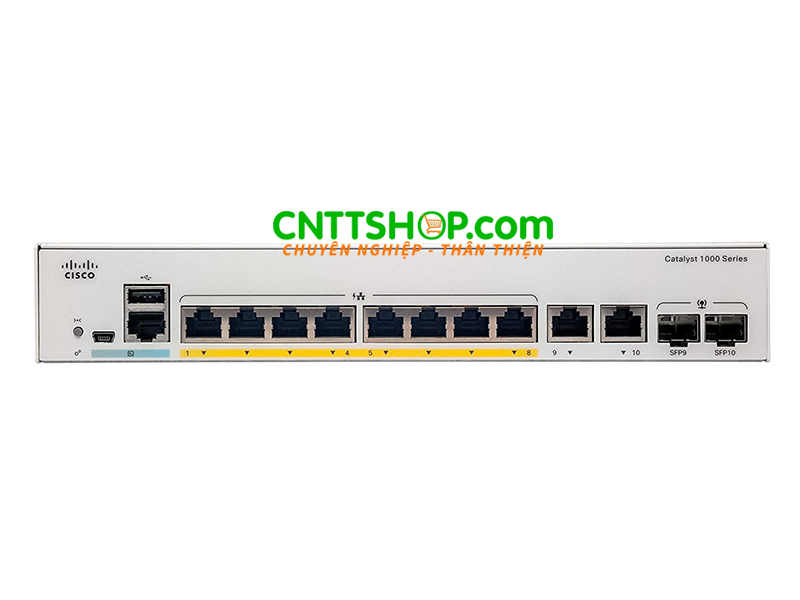

C1000SM-8T-2G-L Switch Cisco Catalyst 1000 Series 8 port 1GE RJ-45

Hardware
Interface	8x 10/100/1000 Ethernet ports, 2x 1G SFP/RJ-45 combo uplinks
PoE power budget
Available PoE power per port
Console ports	1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console
Indicator LEDs	Per-port status: link integrity, disabled, activity System status: system
Dimensions (WxDxH in inches)	10.56 x 7.28 x 1.73
Weight	TBU
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	10 Gbps
Switching bandwidth	20 Gbps
Forwarding rate (64‑byte L3 packets)	14.88 Mpps
Unicast MAC addresses	15,360
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 static routes	16
IPv6 static routes	16
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	600
IPv6 security ACEs	600
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Ingress protection	IP20
Dying Gasp	Yes
Electrical
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging)	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.13A to 0.22A
Power rating (maximum consumption)	0.04 kVA
Safety and compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: Emissions	47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: Immunity	EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	TBD

C1000SM-8T-2G-L Switch Cisco Catalyst 1000 Series 8 port 1GE RJ-45
