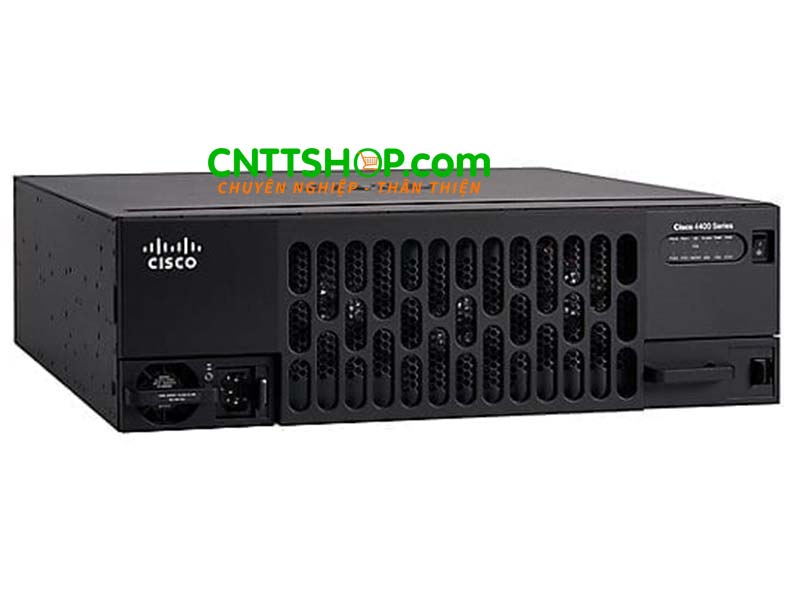

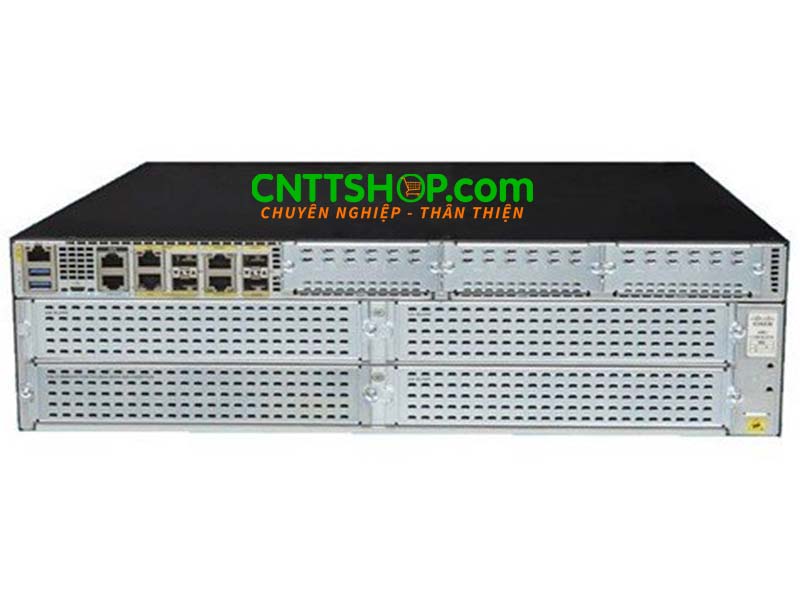

Thiết bị định tuyến Router Cisco ISR4461-AXV/K9

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

Aggregate Throughput	1.5Gbps
Aggregate Throughput (Performance License)	3Gbps
Aggregate CEF Only Throughput (Boost License)	Over 7Gbps
Total onboard WAN or LAN 10/100/1000 ports	4
Total onboard WAN or LAN 10Gbps ports	2
RJ-45-based ports	4
SFP-based ports	4
Enhanced service-module slot	3
NIM (Network Interface Modules) slots	3
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	NA
Default memory DDR3 ECC DRAM (data plane)	4 GB
Maximum memory DDR3 ECC DRAM (data plane)	4 GB
Default memory DDR3 ECC DRAM (control/services plane)	8 GB
Maximum memory DDR3 ECC DRAM (control/services plane)	32 GB
Flash Memory	8 GB (default) / 32 GB (maximum)
External USB 2.0 slots (type A)	2
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port - RJ45 (up to 115.2 kbps)	1
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1
Power-supply options	Internal: AC, DC (roadmap) and PoE
Redundant power supply	Internal: AC, DC and PoE
Power Specifications
AC input voltage	100 to 240 VAC autoranging
DC Input Voltage Input Voltage Input Current	48 – 60V 12A Max
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	7.1 to 3.0A
AC input surge current	60 A peak and less than 5 Arms per half cycle
Maximum power with AC power supply (watts)	1000W (no PoE)
Maximum power with DC power supply (watts)	437 (no PoE)
Maximum power with PoE power supply (platform only) (watts)	1000 with PoE redundant 1450 with PoE boost no redundancy
Maximum endpoint PoE power available from PoE power supply (watts)	500 W with optional redundancy
Maximum endpoint PoE power capacity with PoE boost (watts)	950 W no redundancy
Sizes and Weights
Dimensions (H x W x D)	3.5 x 17.25 x 18.5 in 88.9 x 438.15 x 469.9 mm
Shipping Box Dimensions (H x W x D)	9.75 x 22.25 x 26 in (24.76 x 56.51 x 66.04 mm)
Rack-mount 19in. (48.3 cm) EIA	Included
Rack-mount 23in. (58.4 cm) EIA	Optional
Airflow	I/O side to bezel side
MTBF (Hours)	480770
Operating Conditions
Temperature	32 to 104ºF (0 to 40ºC)
Altitude	0 – 10,000 ft (0 – 3,050 m)
Relative humidity	5% to 85%
Short-term humidity	5% to 90%, not to exceed 0.024 kg water/kg of dry air
Acoustics: Sound pressure (Typical/ maximum)	50.6/73.1 dBA
Acoustics: Sound power (Typical/ maximum)	58.2/78.8 dBA
Nonoperating Conditions
Temperature	-40 to 158ºF (-40 to 70ºC)
Relative humidity	5% to 95%
Altitude	15,584 ft (4750m)
Application Experience with Voice (AXV)	IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps) Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect IP Base + Unified Communications: CME, SRST, CUBE

Router Cisco ISR4461-AXV/K9 Bundles AX + V (Application Experience with Voice)
