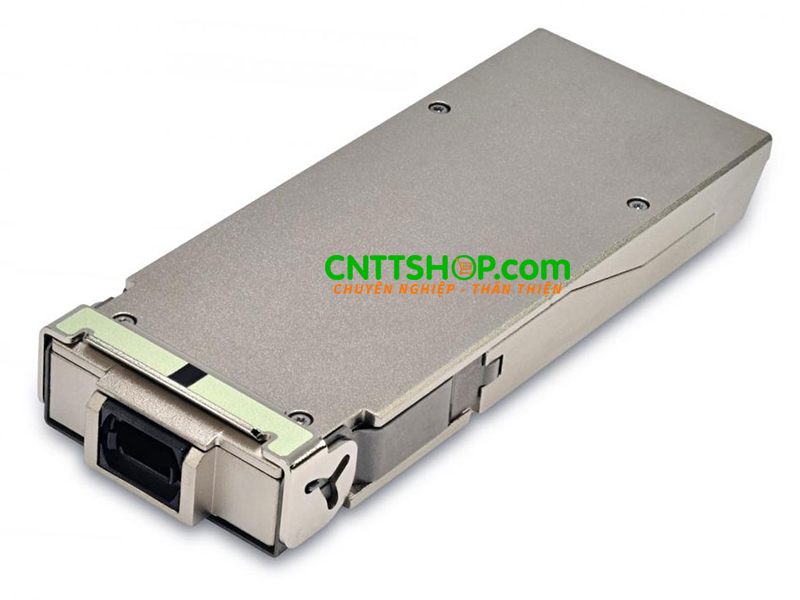

Module quang Huawei CFP2-100G-SR10

Part number

02311AEJ

Version support

Supported in V100R005C00 and later versions

Transceiver form factor

CFP2

Transmission speed

100GE

Center wavelength (nm)

850

Standards compliance

100GBASE-SR10

Connector type

MPO

Applicable cable and maximum transmission distance

24-strand, type B, female connector

• Multimode fiber (OM3) (with diameter of 50 μm): 100 m

• Multimode fiber (OM4) (with diameter of 50 μm): 150 m

Modal bandwidth

• Multimode fiber (OM3): 2000 MHz*km

• Multimode fiber (OM4): 4700 MHz*km

Transmit power (dBm)

-7.6 to -1

Maximum receiver sensitivity (dBm)

-9.5

Overload power (dBm)

-1

Extinction ratio (dB)

≥ 3

Operating temperature

0°C to 70°C
