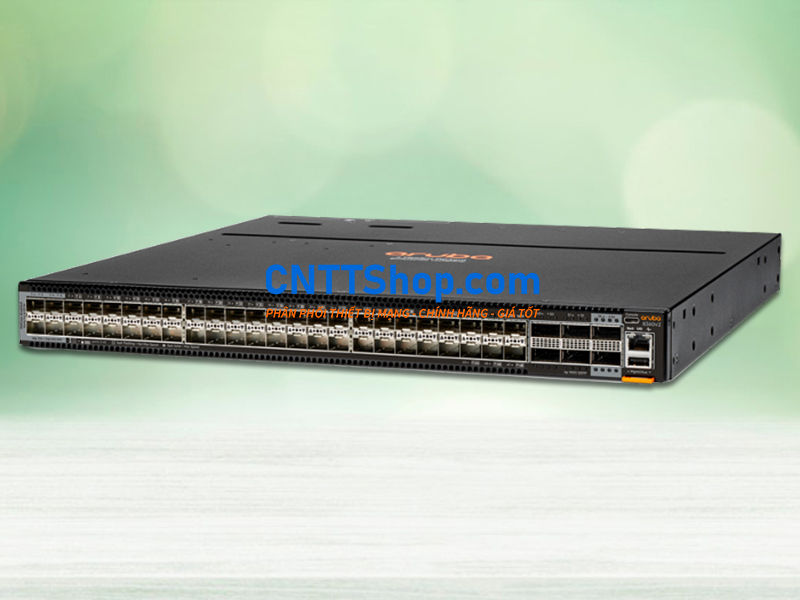

JL705C Switch Aruba CX 8360 v2 Series, 48x 25G SFP28, 6x 100G QSFP28
Thiết bị chuyển mạch Aruba CX 8360 v2 Series JL705C được thiết kế 48 ports 25G SFP28 (44 ports of 1/10/25G + 4 ports 10/25G MACsec), 6 ports 100G QSFP28 (2 ports MACsec), 5x Fans Back-to-Front. Hàng chính hãng, báo giá tốt switch JL705C, tư vấn miễn phí
✓ Báo Giá Tốt Nhất 2022
✓ Giảm 60-70% So Với Giá List
✓ Hỗ Trợ Dự Án và Đại Lý
✓ Hàng Chính Hãng Đầy Đủ CO CQ
✓ 1 Đổi 1 Với Lỗi Kỹ Thuật
✓ Bảo Hành, Đổi Trả Nhanh Chóng
✓ Hỗ Trợ Cấu Hình Lắp Đặt
✓ Tư Vấn Nhiệt Tình, Chính Xác
✓ Giao Hàng Trên Toàn Quốc
- Tầng 2, NTT03 Thống Nhất Complex, 82 Nguyễn Tuân, Thanh Xuân, Hà Nội. - Tầng 2, Số 31B Đường số 1, An Phú, Quận 2, TP HCM.Switch Aruba CX 8360 v2 Series JL705C
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật switch Aruba JL705C
| Datasheet switch JL705C | |
| Specifications | |
| I/O ports and slots |
44 ports of 1GbE/10GbE/25GbE (SFP/SFP+/SFP28) + 4 ports of 10GbE/25GbE (SFP+/SFP28) with MACsec 4 ports of 40GbE/100GbE (QSFP+/QSFP28) + 2 ports of 40GbE/100GbE (QSFP+/QSFP28) with MACsec |
| Additional ports and slots | |
| Power Supplies | 2 field-replaceable and hot-swappable power supplies |
| Fans | 5 field-replaceable and hot-swappable fans |
| Management | RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A |
| Physical characteristics | |
| Physical Dimensions (HxWxD) |
1.73in x 17.4in x 22.0in 44.0mm x 442.5mm x 558.8 |
| Full configuration weight |
23.65lb 10.73kg |
| Memory and Processor | |
| CPU | 1.8 GHz 4-core 64-bit |
| Memory, Drive and Flash | 16GB RAM, 32GB Flash/Storage |
| Packet Buffer | 32MB |
| Performance JL705C | |
| Switching Capacity | 4.8Tbps |
| MAC Address Table Size | 212,992 |
| IPv4 Host Table | 145,780 |
| IPv6 Host Table | 145,780 |
| IPv4 Unicast Routes | 606,977 |
| IPv6 Unicast Routes | 630,784 |
| Maximum Number of Access Control List (ACL) Entries Ingress | IPv4 65,536, IPv6 16,384, MAC 65,536 |
| Maximum Number of Access Control List (ACL) Entries Egress | IPv4 8,192, IPv6 2,048, MAC 8,192 |
| Maximum VLANs | 4,094 |
| IGMP Groups | 7,000 |
| MLD Groups | 7,000 |
| IPv4 Multicast Routes | 7,000 |
| IPv6 Multicast Routes | 7,000 |
| Environment | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) up to 5000 ft |
| Operating Relative Humidity | 15% to 95% relative humidity at 104°F (40°C), non‑condensing |
| Non-Operating Temperature | -40°C to 70°C (-40°F to 158°F) up to 4.6km (15,000 ft.) |
| Non-Operating/Storage Relative Humidity | 15% to 95% at 149°F (65°C) non-condensing |
| Maximum Operating Altitude | Up to 10,000ft (3.048Km) |
| Maximum Non-Operating Altitude | Up to 15,000ft (4.6Km) |
| Primary Airflow | Back-to-Front (Bck-to-Front) |
| BTU/hr | 1,450 |
| Acoustic Sound Pressure and Sound Power |
LWAd = 6.4 Bel LpAm (Bystander) = 45.8 dB |
| Electrical Characteristics | |
| Frequency | 47-63 Hz |
| AC Voltage Current | 100-127V/200-240V 10A (Low Voltage) / 5A (High Voltage) |
| Power Consumption | 230W Idle Power / 725W Max Power |
