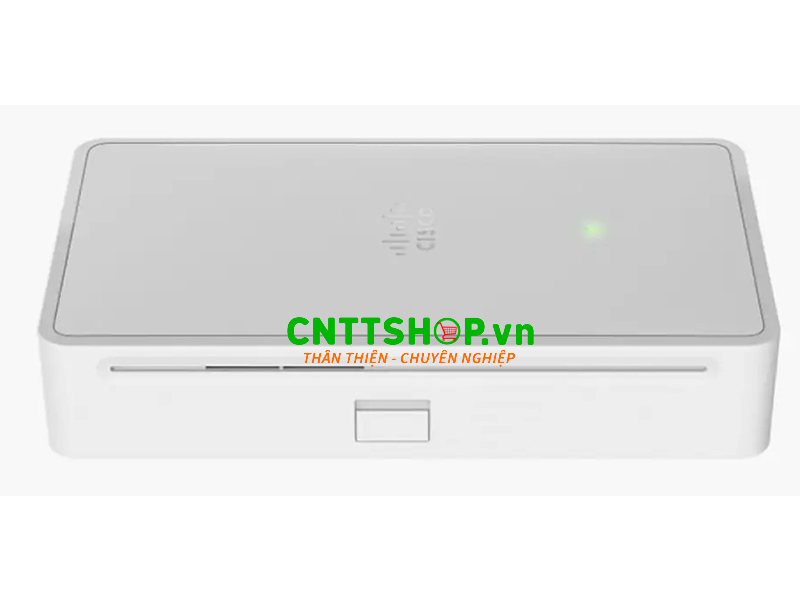

Bộ phát wifi 6 trong nhà Cisco Catalyst C9105AXW-S hai băng tần, 1 cổng 100/1000/2500 Base-T uplink, 3 cổng 10/100/1000 Base-T downlink, sử dụng antenna trong 2x2 MU-MIMO cho tốc độ tối đa 1.488 Gbps ở mode 802.11ax, domain Việt Nam.
✓ Báo Giá Tốt Nhất 2022
✓ Giảm 60-70% So Với Giá List
✓ Hỗ Trợ Dự Án và Đại Lý
✓ Hàng Chính Hãng Đầy Đủ CO CQ
✓ 1 Đổi 1 Với Lỗi Kỹ Thuật
✓ Bảo Hành, Đổi Trả Nhanh Chóng
✓ Hỗ Trợ Cấu Hình Lắp Đặt
✓ Tư Vấn Nhiệt Tình, Chính Xác
✓ Giao Hàng Trên Toàn Quốc
- Tầng 2, NTT03 Thống Nhất Complex, 82 Nguyễn Tuân, Thanh Xuân, Hà Nội. - Tầng 2, Số 31B Đường số 1, An Phú, Quận 2, TP HCM.Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Item | Specification |
Part numbers | Cisco Catalyst 9105AX Access Point: Wall Plate, with internal antennas |
Accessories | Mounting bracket: AIR-AP-BRACKET-W4= (available as spare) Spacer kit: C9105AXW-KIT (sold separately) |
Software | Cisco Unified Wireless Network Software Release 8.10.MR3 or later |
Cisco IOS® XE Software Release 17.3.1, or later | |
Supported wireless LAN controllers | Cisco Catalyst 9800 Series Wireless Controllers |
Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller | |
802.11n version 2.0 (and related) capabilities | 2x2 MIMO with two spatial streams |
Maximal Ratio Combining (MRC) | |
802.11n and 802.11a/g | |
20- and 40-MHz channels | |
PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) | |
Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) | |
802.11 Dynamic Frequency Selection (DFS) | |
Cyclic Shift Diversity (CSD) support | |
802.11ac | 2x2 downlink MU-MIMO with two spatial streams |
MRC | |
802.11ac beamforming | |
20-, 40-, 80- MHz channels | |
PHY data rates up to 866.7 Mbps (80 MHz with 5GHz) | |
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) | |
802.11 DFS | |
CSD support | |
WPA3 support | |
802.11ax | 2x2 uplink/downlink MU-MIMO with two spatial streams |
Uplink/downlink OFDMA | |
TWT | |
BSS coloring | |
MRC | |
802.11ax beamforming | |
20-, 40-, 80- channels | |
PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) | |
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) | |
802.11 DFS | |
CSD support | |
WPA3 support | |
Integrated antenna | 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth | |
Interfaces | 1x 100/1000/2500 Base-T (Ethernet) Uplink Interface |
3x 10/100/1000 Base-T (Ethernet) Downlink Interface (LAN1,LAN2 and LAN3, LAN1 supports 10.5W PSE Power Budget) | |
Management console port (RJ-45) | |
USB 2.0 at 4.5W | |
Passthru Port | |
Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
Dimensions (W x L x H) | Access point (without mounting brackets): 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm) |
Weight | 0.8 lb. (373.2g) |
Input power requirements | 802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE®) |
Cisco power injector, AIR-PWRINJ6= | |
802.3af PoE | |
Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) | |
802.3af (PoE): 2.4-GHz radio: 2x2, 5-GHz radio: 2x2, Link speed: 2.5 mGig, USB: disable, LAN1 PSE: disable 802.3at (PoE+): 2.4-GHz radio: 2x2, 5-GHz radio: 2x2, Link speed: 2.5 mGig, Either USB or LAN1 PSE enabled. |
|
Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) |
Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) | |
Operating temperature: 32° to 122°F (0° to 50°C) | |
Operating humidity: 10% to 90% (noncondensing) | |
Operating altitude test: 40˚C, 9843 ft.(3000 m) | |
Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 2x2 to 1x1 on the 2.4 GHz radio. |
